REBAR SCANNING SURVEYS

Concrete Rebar Scanning Surveys in London Brighton and the Surrey and UK Wide, Concrete Rebar Location. Rebar Mapping London Surrey and UK.

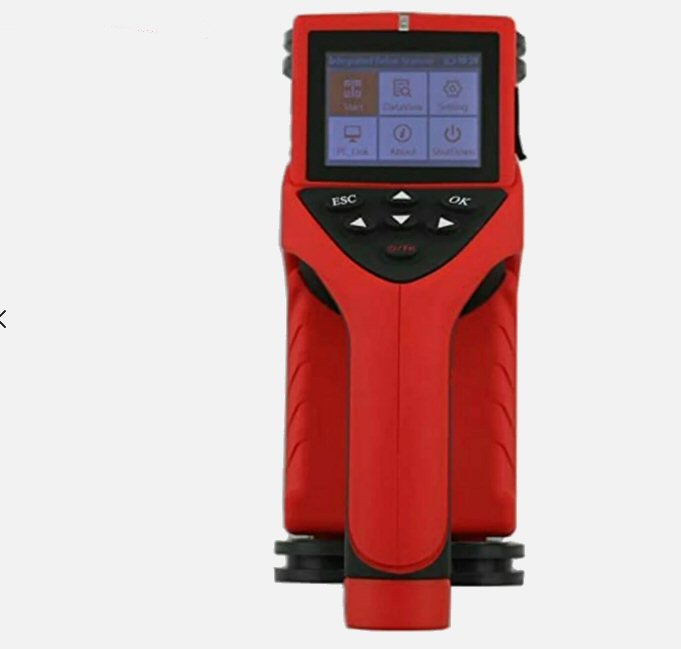

Rebar Scanner Locator with Automatic Identification Steel Bar Positions and NDT Test.




Rebar Scanner Locator with Automatic Identification Steel Bar Position NDT Test

Features:

* Investigation depth could reach 180mm

* Single comprehensive probe.

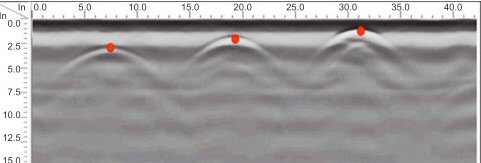

* Peak scanning

* Automatic identification of rebar positions

* Laser positioning

* Automatic reading spacing of bars

* Machine software is complete.The report could be printed automatically connecting with computer

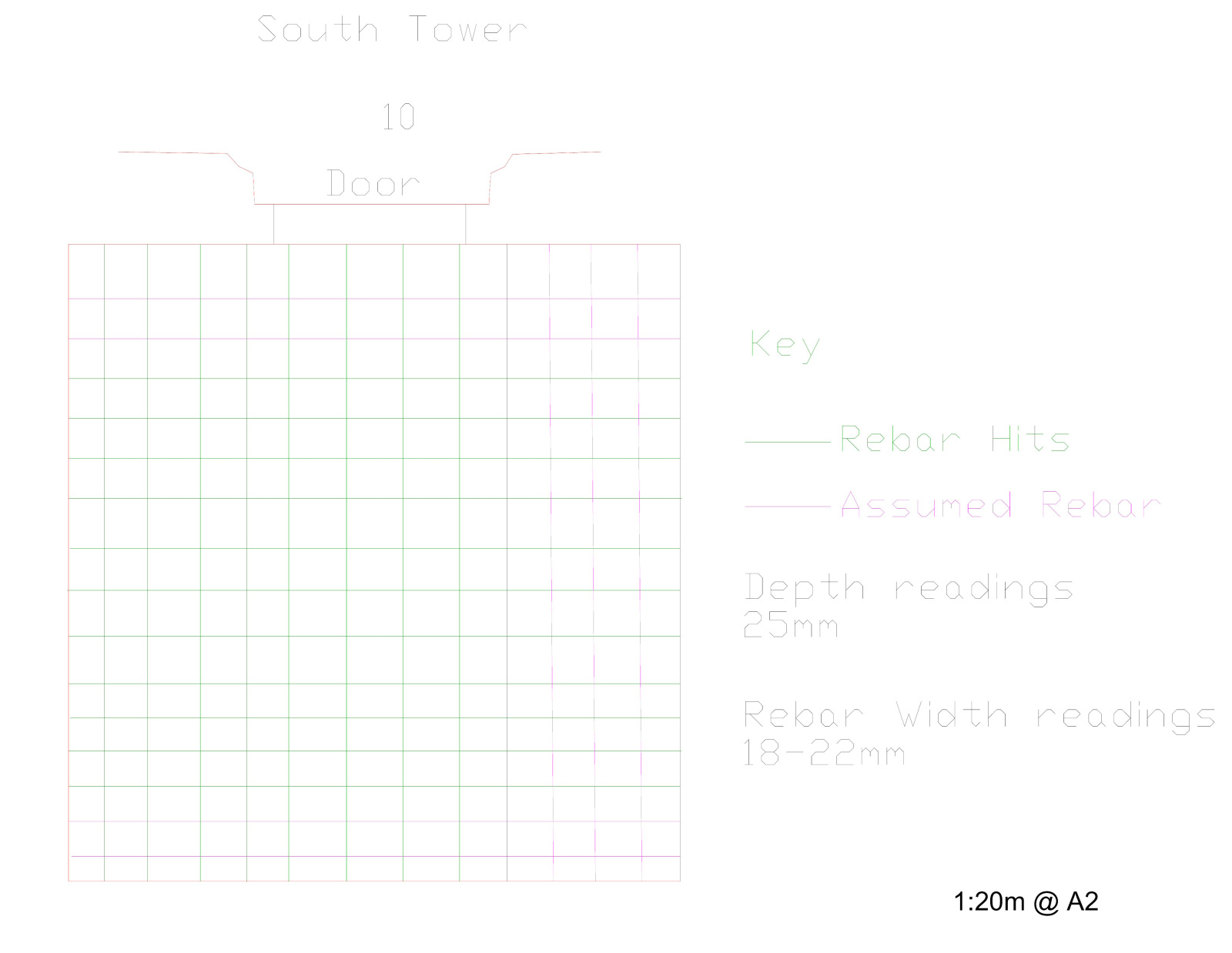

* Grid scan of the rebar position

* Profile scan of the rebar position

Technical Specification:

* Bar diameter application range(mm):Φ6 - 50

* Maximum permissible error of Bar diameter:≤±1

Cover thickness measuring range

* The first measuring range (mm):6 - 90

* The second measuring range (mm):7-180

The maximum error of cover thickness

* The first measuring range (mm):6 - 59;The second measuring range (mm):7 - 79;Accuracy:≤±1

* The first measuring range (mm):60 - 69;The second measuring range (mm):80 - 119;Accuracy:≤±2

* The first measuring range (mm):70 -90;The second measuring range (mm):120 - 180;Accuracy:≤±4

* Standard Delivery: Main unit, Software, USB connecting cable, Power charger, Manual, Warranty card, Carry case◆ Bar diameter application range(mm):Φ6 - 50; Maximum permissible error of Bar diameter:≤±1; Cover thickness measuring range, The first measuring range (mm):6 - 90, The second measuring range (mm):7-180




Locate my Rebar, Locate rebar underground in walls.
